Electrical

30+5 MFD

Un capacitor con valor 30.5 µF puede ser: Un capacitor de marcha (run capacitor) para: motor del ventilador exterior o compresor pequeño/mediano (según diseño del equipo) Puede ser: Simple (30.5 µF solamente) o parte de un dual capacitor (ej: 30.5/5 µF)

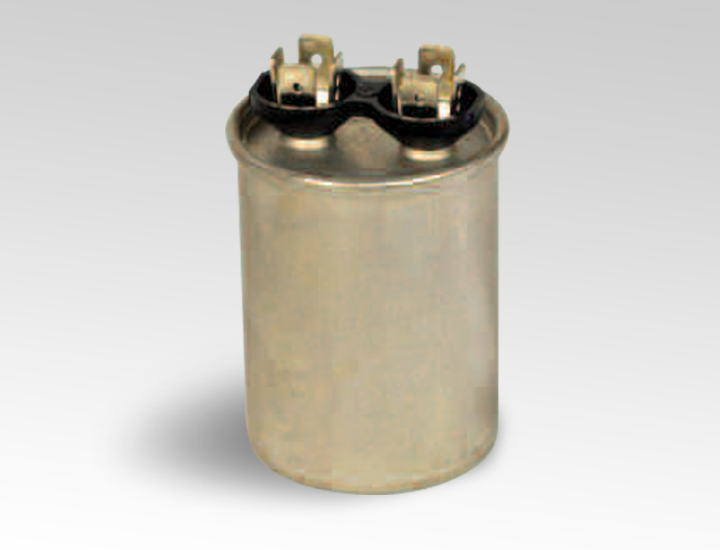

70+7.5 MFD MOTOR RUN CAPACITOR

Modelo: PPS7570440RD Tipo: Capacitor dual redondo Capacitancia: 70 + 7.5 µF Voltaje: 440 VAC Reemplazos: Packard PRCFD7075, DiversiTech 4JR7570, TradePro TP7075440R, Supco CD70+7.5X440R.

40+5 MFD 440/370 VAC MOTOR RUN CAPACITOR

Número de parte: PPS540440RD Capacitancia: 40/5 MFD (µF) Voltaje: 440 VAC Tipo: Capacitor dual redondo (Dual Run Capacitor) Aplicación: Aire acondicionado y bombas de calor. Funciones: Alimenta el compresor (40 µF) y el motor del ventilador del condensador (5 µF). Certificaciones: UL y cUL, libre de PCB

DIGITAL THERMOSTAT 5+2 DAY (PROSTAT)

Programación 5+2 días con hasta 4 periodos por día. Compatible con sistemas de 2, 3 o 4 cables. Alimentación por 2 baterías AA o 24 VAC. Pantalla digital retroiluminada. Indicador de cambio de filtro. Indicador LED bicolor (rojo para calefacción y verde para enfriamiento). Terminales: R, RC, RH, G, W1, Y1, O/B y C

DIGITAL THERMOSTAT PROSTAT

1 Calefacción / 1 Enfriamiento (1H/1C). No programable. Compatible con sistemas de 2, 3 o 4 hilos. Pantalla digital grande. Lectura en °F o °C. Terminales RC y RH. Indicador LED bicolor (rojo para calefacción y verde para enfriamiento). Compartimiento frontal para baterías AA.

DEFINITE PURPOSE CONTACTOR W/LUGS 1 POLE

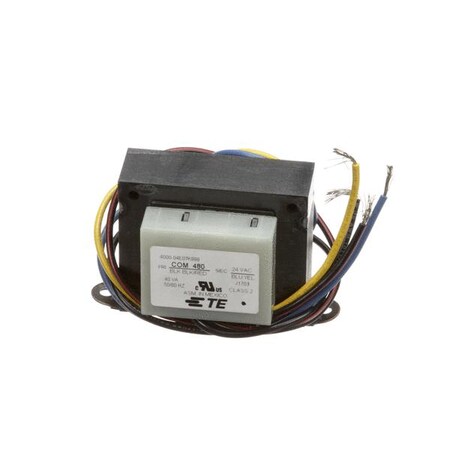

40VA CONTROL TRANSFORMER

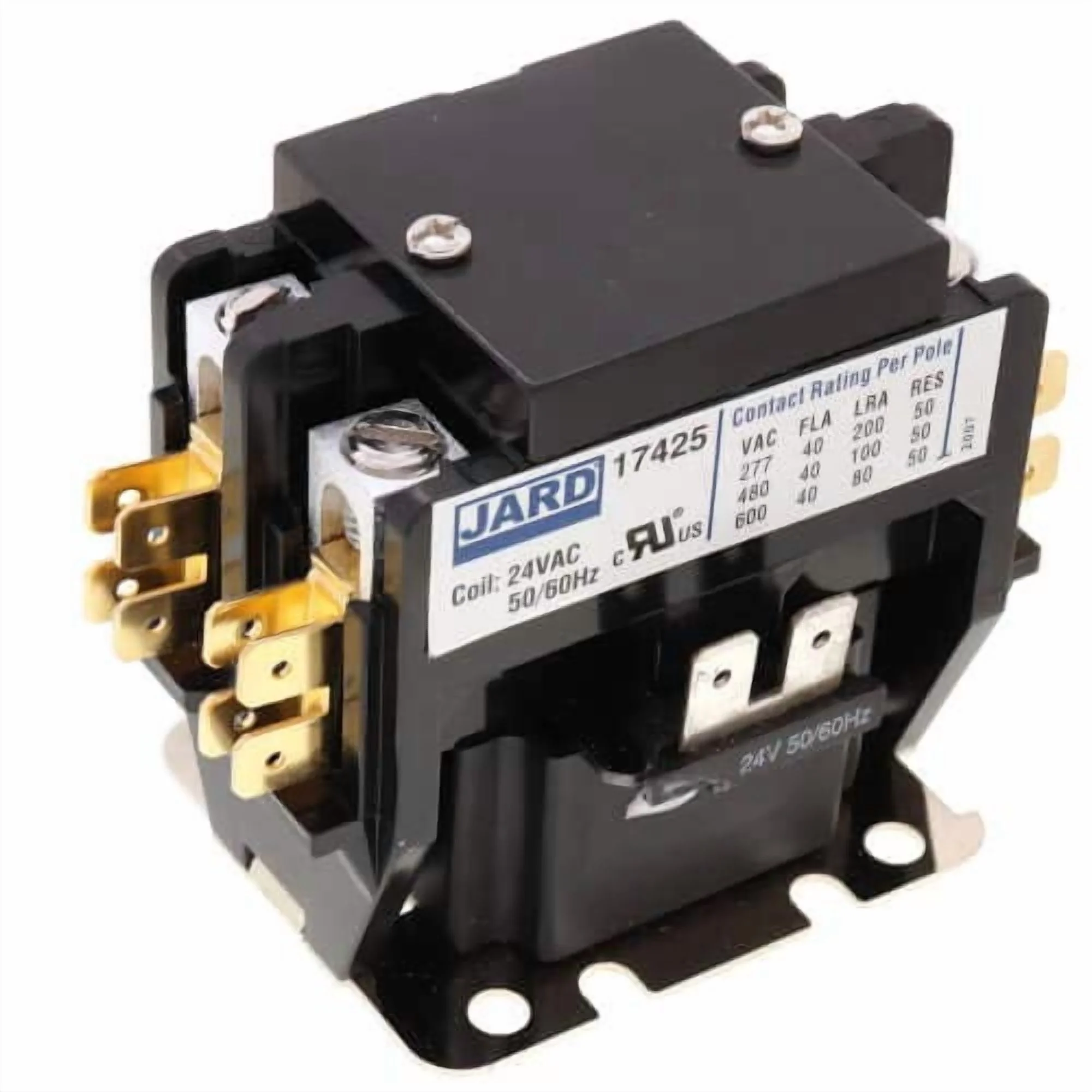

DEFINITIVE PURPOSE CONTACTOR W/LUGS 2 POLES

NON-PROGRAMMABLE THERMOSTAT BRAEBURN 1230

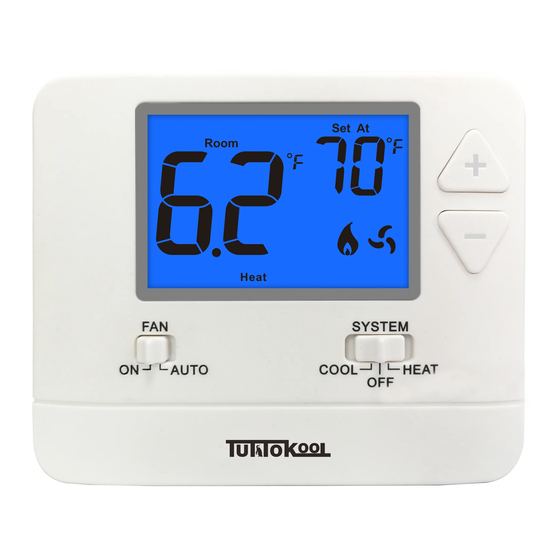

TK-701 TUTTOKOOL THERMOSTAT

scorpion uvc-led over 5x

The Scorpion is a UVC-LED disinfection unique system designed for use in residential and light commercial HVAC systems. The LED light has 30,000 hours of run time and with an integrated air flow sensor the Scorpion UVC-LED can last up to 5 times longer than traditional UV bulbs. The Scorpion UVC-LED is designed to kill mold, mildew, bacteria, viruses, and other harmful biological growth in the HVAC system and on the evaporator coil. The system will also help reduce foul and musty odors like dirty sock smell and will even help keep the drain line from clogging due to buildup in the condensate line

scorpion uvc-led

The Scorpion is a UVC-LED disinfection unique system designed for use in residential and light commercial HVAC systems. The LED light has 30,000 hours of run time and with an integrated air flow sensor the Scorpion UVC-LED can last up to 5 times longer than traditional UV bulbs. The Scorpion UVC-LED is designed to kill mold, mildew, bacteria, viruses, and other harmful biological growth in the HVAC system and on the evaporator coil. The system will also help reduce foul and musty odors like dirty sock smell and will even help keep the drain line from clogging due to buildup in the condensate line

Primary Pan Latching Switch

The DIVERSITECH BG-301+ is a latching float switch designed for primary drain pans. This switch features a proprietary water reservoir and a clear status window. It measures the water level in the pan at multiple stages, providing visual alerts to both homeowners and contractors regarding the system's current status. The device also serves as a preventive measure against partial clogs, which could result in system shutdown.

Ultra Violet Light

Germicidal UV-C systems, primarily for HVAC, designed to improve indoor air quality by killing mold, bacteria, and viruses by deactivating their DNA, often installed in ductwork or near evaporator coils to disinfect air and surfaces, and includes the lamp, ballast, and transformer for easy integration with various home voltages.

Hot Surface Igniter

Includes universal electrical plug and connection kit. Comparable to HONEYWELL Glowfy

Hot Rod 120 Volt Nitrider ignitor

White-Rodgers WR-21D64-2 HotRod Universal Nitride Ignitor Upgrade Kit The White-Rodgers WR-21D64-2 HotRod Universal Nitride Ignitor Upgrade Kit is a reliable solution for ignitor replacement. This kit includes a nitride ignitor, a universal mounting bracket, and a connection harness. It is suitable for use in various applications requiring ignition. Replaces over 170 ignitors Includes 15.5-inch leads with stripped ends Designed for easy installation with included mounting hardware Product Highlights: This kit is perfect for replacing existing ignitors in many systems.

Universal hot surface igniter

Ignator nitrider Honeywell15'' lead flat style universal replacement Pn: 128244

Definite Purpose Contactor w/lugs Poles:1-1/2

1

Furnace Sensor Flame 90 ELBOW

The Rheem 62-23543-01 Flame Sensor is a small but critical safety component used in gas‐fired furnaces (such as those from Rheem, Ruud, WeatherKing, etc.). It is designed to detect the presence of a burner flame and communicate that to the furnace’s control board. If the flame is properly established, the sensor signals the control board to continue normal operation (for example, stop the igniter once the flame is stable). If the flame is not detected, the sensor helps trigger a safety lock‐out, preventing unsafe conditions.

(Thermostat Wire) 14/4 STRN TRAY CABLE TW BLACK 50FT

This is a four-conductor, 14 AWG stranded copper tray/control cable, designed for use in power and control applications. It’s labelled “14/4 STRN TRAY CABLE TYPE TW INNERS BLACK 50 FT”, indicating 14 gauge, four conductors, stranded, tray cable, rated for 600 V, direct burial capable, with black outer jacket and 50 foot length. It is intended for use in cable trays, raceways, exposed runs, and can also be used for direct burial (depending on its jacket and listing) — making it suitable for industrial or commercial installations where power/control runs need durable multiconductor cable.

Goodman Rollout Switch

A furnace limit switch (also called a high limit switch or fan limit switch) is a safety and control device that monitors the air temperature inside the furnace. It ensures the furnace operates safely by: Turning the blower fan on and off at the right temperatures. Shutting off the burners if the furnace overheats. Essentially, it prevents damage to the furnace and protects against fire hazards caused by excessive heat.

Rollout Switch

A furnace limit switch (also called a high limit switch or fan limit switch) is a safety and control device that monitors the air temperature inside the furnace. It ensures the furnace operates safely by: Turning the blower fan on and off at the right temperatures. Shutting off the burners if the furnace overheats. Essentially, it prevents damage to the furnace and protects against fire hazards caused by excessive heat.

60 Amp Air Conditioning Disconnect

The Eaton G8064 is a non-fusible pull-out disconnect device designed for air-conditioning and heat-pump condensing units. It provides a visible means of disconnect (you can physically pull out the module to disconnect power) so that service technicians have a clear “off” state for maintenance. It is housed in a weather-resistant outdoor enclosure (typically NEMA 3R rain-proof) making it suitable for wall-mount near an outdoor A/C unit. According to one distributor:

Refridgeration Thermostat COOLER

The Everwell W1609‑101 is a remote‑bulb mechanical refrigeration thermostat / temperature controller used in refrigeration systems (cold rooms, milk tanks, beverage dispensers, ice machines, etc.). everwellparts.com +1 It uses a capillary sensor (bulb + capillary tube) to sense the temperature at the point where the bulb is mounted or immersed, and then actuates a switch in the controller housing. AusPower Australia +2 everwellparts.com +2 The control action is “close on rise”, meaning as the sensed temperature rises past the setpoint + differential, the contact inside closes (energizing whatever load is connected). everwellparts.com +1 It comes with a 5 ft capillary length (i.e. the bulb and tube assembly is ~5 ft long) from the main housing to the sensing bulb. everwellparts.com +2 AusPower Australia +2 It is UL‑listed (UL file E486748) indicating it meets certain safety and performance standards. everwellparts.com
